NZXT H2 Flow Mini-ITX PC Case Review

The NZXT H2 Flow Mini-ITX PC case immediately grabbed my attention when I saw the press release announcing it. As a massive fan of the H1, NZXT’s compact all-in-one case that really pushed the envelope and is still in use as my lounge gaming PC, I’ve been eagerly awaiting a follow-up. While this is not an H1 V3, the H2 Flow is still absolutely worthy of excitement. After building a new gaming PC inside it, it is time for my review.

The vertical advantage

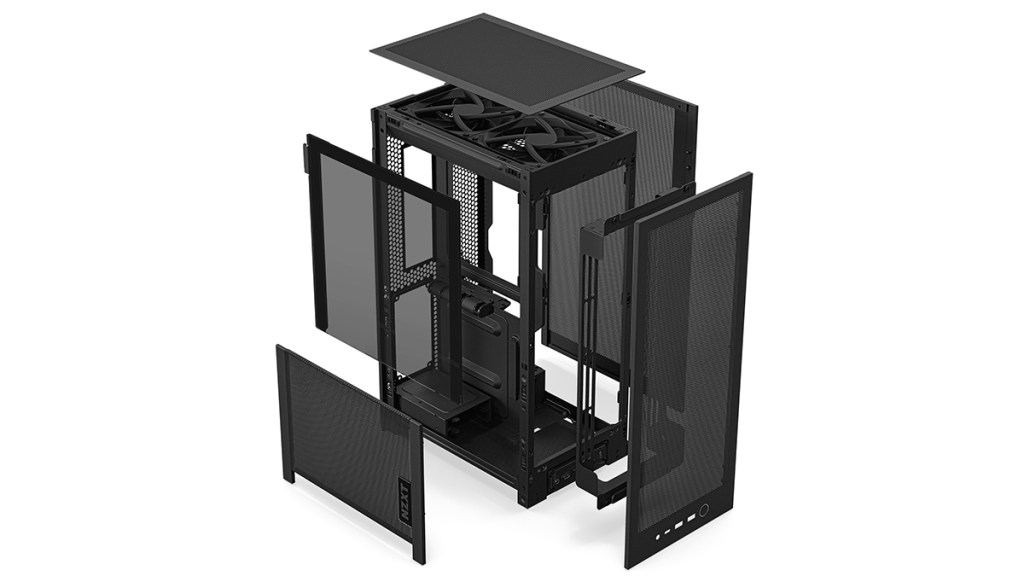

The main attraction of the H2 Flow is its 20.7L vertical design. It offers a good bit of internal space for components without taking up a massive footprint, and that is especially valuable for those who want the PC to sit on their desktop. When it comes to Mini-ITX options from mainstream companies, this case is one of the few that really stands out right now. NZXT has also done a good job of making the case feel modern, with tool-less panels, a PCIe 5.0 riser cable, built-in cable management, and two pre-installed top 120 mm fans helping to round out the package.

When considering a Mini-ITX case, users absolutely must check compatibility for components, and the H2 Flow does come with some clearly defined limits. It supports front-mounted radiators up to 280 mm, with front radiator and fan thickness up to 60 mm total, which is a big deal for those looking to run powerful CPUs. GPU support goes up to 331 mm in length, 65 mm in thickness, and 150 mm in width. CPU air cooler clearance is up to 75 mm, and power supply support is limited to SFX and SFX-L units up to 130 mm in length. So yes, there is flexibility here, but it is the kind of flexibility that still demands careful planning before buying parts.

Let’s get building

My building experience went very well. While the original H1 included a power supply and water cooler of its own, making for an all-in-one solution, the H2 Flow’s compatibility allows for more flexibility. Of course, if you want to keep things simple, opting for NZXT’s own components would be a sensible choice.

With my H2 Flow review sample, NZXT also sent over its new C850 SFX Gold power supply, the LCD-screen-equipped Kraken Elite 280 RGB V2 AIO liquid cooler, and its impressive single-frame performance fans. As expected, these combine effortlessly with the H2 Flow and offer top-tier performance. They are recommended for those willing to spend more than they would on budget offerings.

The biggest win for the H2 Flow is how well it balances the compact form factor with enough room for both components and good airflow. It is not quite as tiny as the H1, with NZXT pushing things a little larger volume-wise, but it does so without ballooning the desktop footprint. That feels like the right trade-off. The case still has that compact, display-friendly appeal, but it is easier to imagine building a genuinely powerful gaming system in it without feeling like every component choice is a compromise.

The downsides

As for downsides, while I am a big fan of the finished build and it truly feels like an evolution of what the H1 achieved, there are some niggles that potential buyers should consider. First, if you have never built in a Mini-ITX case before, the H2 Flow does not magically solve the sometimes challenging build process. Room, while relatively generous here, is still limited when compared to a full-sized case. That might sound obvious, but I think it is worth pointing out to newcomers. Cable and tube management can still get a little intense.

The other downside is cooler support. The H2 Flow offers very limited support for air coolers, with only 75 mm of CPU cooler clearance, and NZXT is very clearly designing around AIO liquid cooling here. That makes sense given the rest of the layout, but it does narrow your options if you prefer air cooling. GPU support is also one of those areas where the headline number only tells part of the story. Yes, 331 mm length support sounds strong, but once thickness, width, radiator clearance, and cable routing all come into play, there is not a huge margin for error with chunkier modern cards.

Disclosure: Review sample provided by NZXT (H2 Flow) (C850 SFX PSU)
